iCarsoft CR Max All Makes/All Systems Pro Scan Tool

The iCarsoft CR Max is the cabled 7-inch diagnostic tablet in the iCarsoft all-makes range. It is designed for independent workshops, mobile technicians, fleet maintenance and serious home users who want more screen space and a more workshop-focused interface than a smaller handheld scan tool.

It combines full-system diagnostics across 58 supported vehicle makes with bi-directional active testing, selected ECU coding and configuration functions, AutoVIN, 50 service procedures, CAN-FD support, diagnostic reports and lifetime free Wi-Fi updates. The direct 16-pin cable provides a stable vehicle connection without a separate wireless VCI.

Why Choose the CR Max?

The CR Max is a strong choice where a larger screen and tablet interface will make regular diagnostic work easier, but wireless vehicle connection is not essential. The direct cable keeps setup simple and provides a consistent connection while scanning modules, viewing live data or running service procedures.

Key Features

Full-System Diagnostics

Unlike a basic OBD2 reader, the CR Max is designed to communicate with manufacturer-specific control modules throughout supported vehicles. Depending on the vehicle, this can include engine, transmission, ABS, airbags, steering, body control, climate control, electronic parking brake, suspension, lighting, doors, windows, seats, gateway modules and other fitted systems.

Available functions include reading and clearing fault codes, viewing ECU information, live data and freeze-frame information, carrying out a complete vehicle scan and opening individual modules for more focused diagnosis.

The exact systems available depend on the vehicle make, model, year, market specification and fitted control modules.

Bi-Directional Control and Active Testing

Bi-directional control allows the CR Max to send commands to supported modules and components rather than only reading stored information. This can help confirm whether a component responds correctly before parts are replaced.

Depending on the vehicle, active tests can include the ABS pump motor, fuel pump, cooling fans, window regulators, door locks, throttle actuator, mirrors, lights, horn, wipers, HVAC components, relays and other supported electrical systems.

Active-test coverage varies by vehicle make, model, year and fitted ECU. A test available on one vehicle may not be available on another.

Selected ECU Coding and Configuration

The CR Max supports selected coding, adaptation and configuration functions on compatible vehicles from BMW, Volkswagen Group, Hyundai and Kia, Ford, Mazda, Renault, Chrysler, Jeep, Dodge and Subaru.

Depending on the vehicle, this may include component adaptation, module matching, parameter calibration, selected programmable settings, data migration and supported feature configuration. Availability varies significantly by make, model, year and ECU.

This is not universal online dealer programming or unrestricted blank-module programming. Confirm the exact vehicle and required coding function before purchase.

50 Service and Maintenance Functions

The CR Max combines nine commonly used service functions with 41 additional workshop procedures for supported vehicles.

Additional supported procedures can include transmission adaptations, air suspension service, airbag functions, headlamp calibration, window and seat calibration, EGR and AdBlue routines, clutch matching, crankshaft learning, turbocharger functions, NOx sensor reset, radar and camera calibration and other vehicle-specific maintenance procedures.

Service functions vary by vehicle make, model, year, system and ECU configuration. A function listed in the tool does not mean it is available on every supported vehicle.

AutoVIN and Vehicle Identification

AutoVIN can identify compatible vehicles automatically after connection, reducing manual setup and helping the tool select the correct diagnostic software. Where AutoVIN is not supported, the vehicle can still be selected manually through the menus.

CAN-FD and Optional DoIP Support

CAN-FD is supported on compatible later-model vehicles, including selected 2020-onward GM and Chrysler-group platforms.

The CR Max is also DoIP-ready for selected modern BMW, Volvo, Jaguar and Land Rover vehicles, but the required DoIP connection hardware is not included as standard and must be purchased separately.

Some late-model vehicles use manufacturer security gateways that can restrict active tests, service functions or coding. Access depends on the vehicle and manufacturer requirements.

Full OBD2 and Emissions Diagnostics

The CR Max supports all 10 standard OBD2 test modes on compatible OBDII, EOBD, JOBD, KOBD, CAN and CAN-FD vehicles. This includes reading and clearing emissions-related codes, I/M readiness, live data, freeze-frame data, vehicle information, oxygen-sensor tests, onboard monitor tests, EVAP-system testing and pending codes.

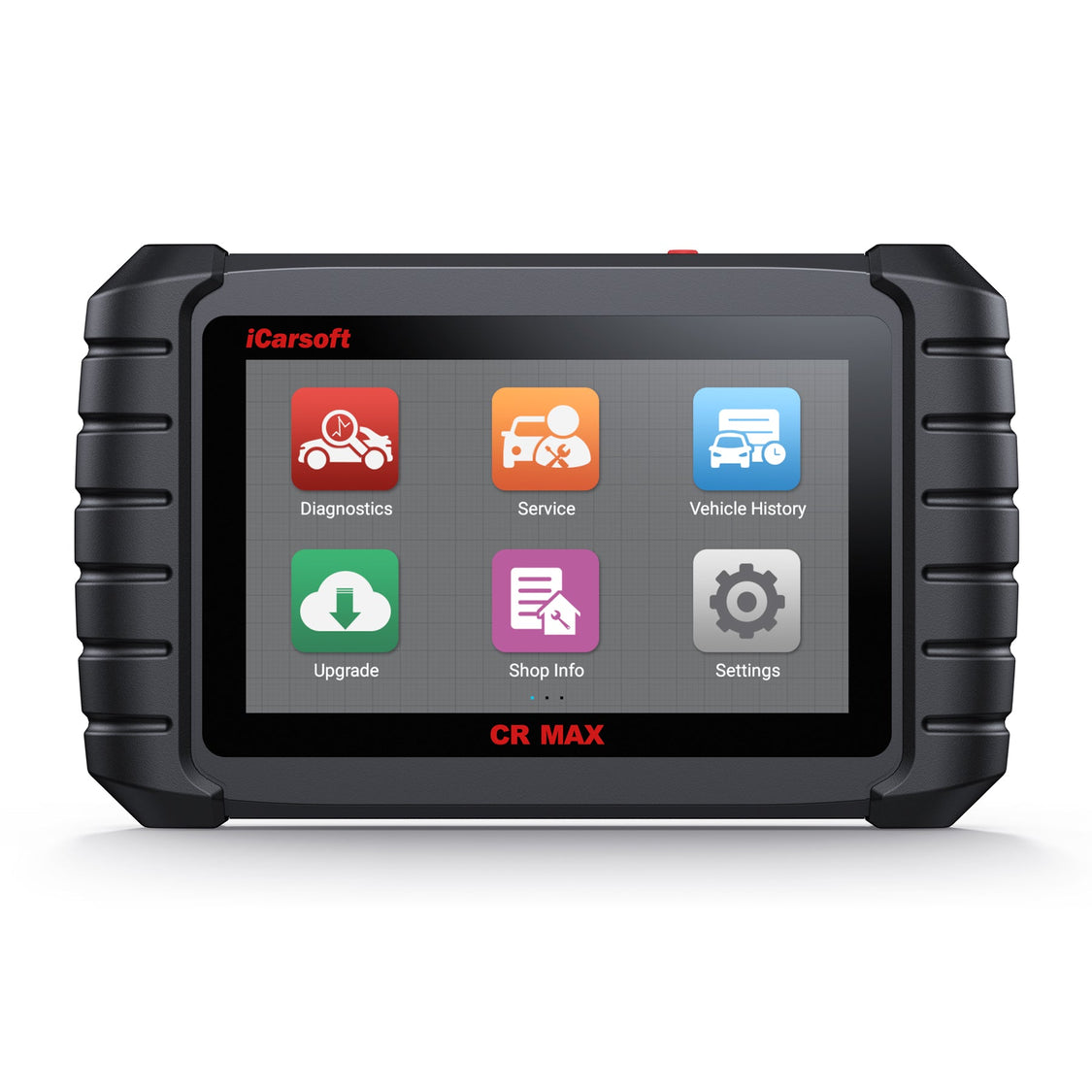

Tablet Hardware and Workshop Workflow

The Android tablet uses a 7-inch 1024 × 600 touchscreen, quad-core 1.3GHz processor, 64GB internal storage and a 5000mAh rechargeable battery. Battery life is rated at up to approximately five hours of continuous use.

The larger screen provides more room for live-data graphs, system scans and fault information, while Wi-Fi allows software updates to be installed directly on the tablet. Updates remain free for the life of the tool with no annual subscription.

Diagnostic History and Reports

Previously tested vehicle systems can be reopened from the tablet, making it easier to return to an ongoing job. Diagnostic reports can be saved and shared, then printed through a Windows computer using a USB connection.

A built-in feedback function also allows diagnostic LOG information to be submitted when software coverage or communication issues need review.

CR Max, CR Max BT or CR Max P?

Vehicle Coverage

The iCarsoft CR Max supports 58 major vehicle makes across European, Asian, American and Australian vehicles.

European:
Mercedes-Benz, Maybach, BMW, Mini, Rolls-Royce, Abarth, Fiat, Lancia, Alfa Romeo, Ferrari, Maserati, Ford Europe, Jaguar, Land Rover, Opel, Vauxhall, Porsche, Citroën, DS, Peugeot, Dacia, Renault, Saab, Smart, Sprinter, Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen, Volkswagen Commercial, Volkswagen LT3, MAN Light-Duty and Volvo.

Asian:
Daewoo, Acura, Honda, Hyundai, Kia, Isuzu, Mazda, Mitsubishi, Infiniti, Nissan, Nissan GT-R, Renault Samsung, Subaru, Suzuki, Lexus, Scion and Toyota.

American and Australian:
Chrysler, Dodge, Jeep, Ford USA, GM, Holden and Ford Australia.

Hardware Specifications

• Android operating system
• Quad-core 1.3GHz processor
• 7-inch HD touchscreen, 1024 × 600
• 64GB internal storage
• 5000mAh rechargeable battery
• Up to approximately five hours of continuous use
• USB 2.0, Wi-Fi, Bluetooth and OBDII connectivity
• Dimensions: 240 × 150 × 35mm
• Weight: approximately 750g
• Operating temperature: 0–50°C

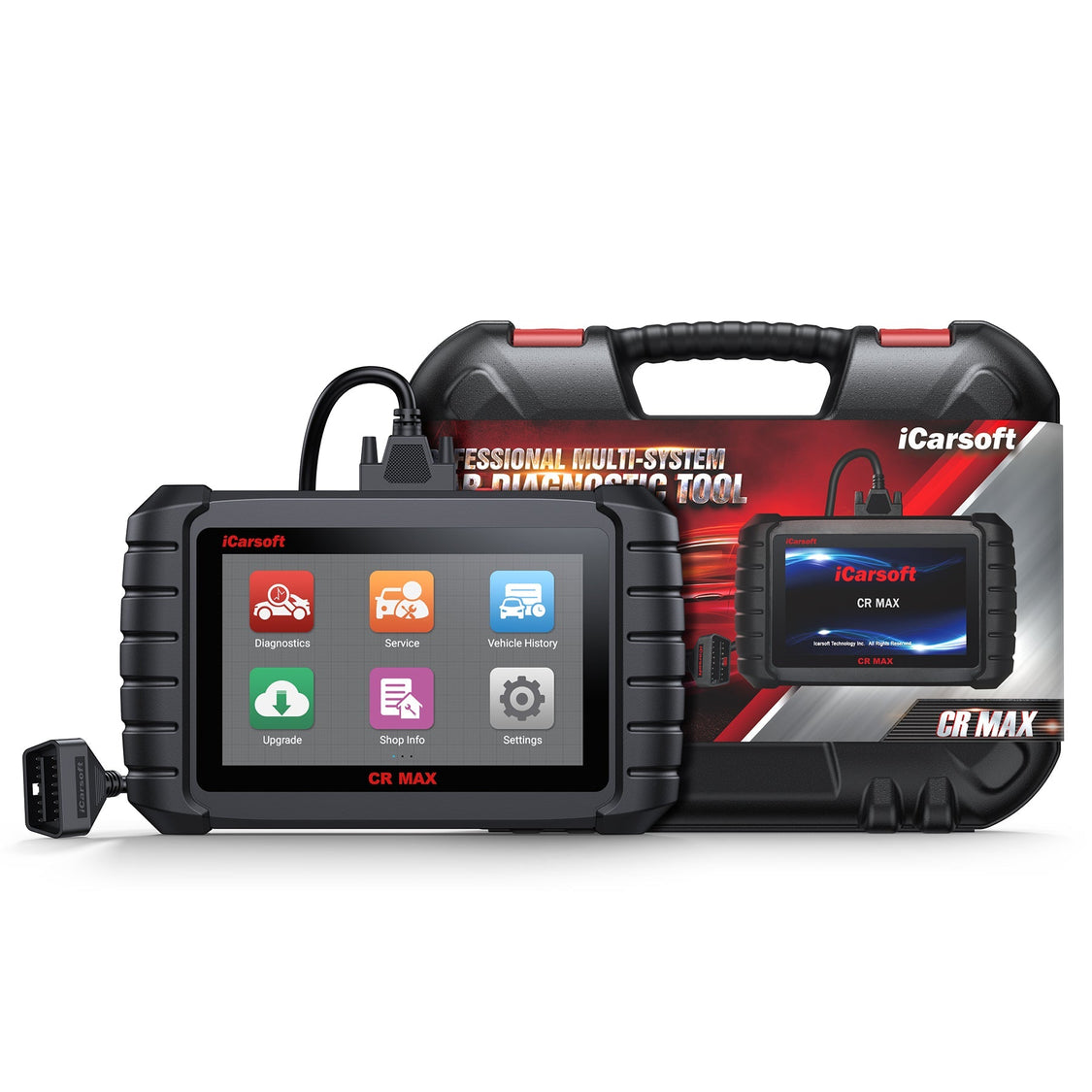

What’s in the Box

• iCarsoft CR Max diagnostic tablet
• OBDII 16-pin main cable
• External power adapter
• USB data and charging cable
• Quick guide and user manual
• Protective carry case

Is the CR Max the Right iCarsoft Tool for You?

Choose the CR Max if you want full-system all-makes diagnostics in a larger touchscreen format, together with active testing, selected coding, 50 service functions and a straightforward direct-cable connection.

It is particularly well suited to regular multi-vehicle work where the extra screen space is useful but wireless diagnostics are not essential. For a smaller handheld option, compare the CR Pro+ or CR Pro S. For wireless tablet operation, compare the CR Max BT. For the largest and highest-specification current iCarsoft tablet, look at the CR Max P.
