iCarsoft CR Pro S All Makes/All Systems Scan Tool

The iCarsoft CR Pro S is the premium handheld all-makes scan tool in the current iCarsoft range. It is aimed at serious home users, mobile technicians and smaller workshops that want a faster, more modern interface than a traditional button-operated scanner without moving up to a larger tablet.

It combines a 5-inch Android touchscreen with full-system diagnostics across 58 supported makes, strong bi-directional testing, selected ECU coding and adaptations, AutoVIN, 50 service functions, CAN-FD support, diagnostic reports and lifetime free Wi-Fi updates.

Why Choose the CR Pro S?

The CR Pro S is a strong choice where full-system access and active testing will be used regularly, but a larger tablet or wireless VCI is unnecessary. Its direct OBD cable keeps setup straightforward, while the touchscreen makes it easier to move through control modules, live data and service menus.

Key Features

Full-System Diagnostics

The CR Pro S is designed to communicate with manufacturer-specific control modules throughout supported vehicles, not only the engine system. Depending on the vehicle, this can include engine, transmission, ABS, airbags, steering, body control, electronic parking brake, climate control, lighting, doors, windows, seats, suspension, battery management, gateway modules and other fitted systems.

Available functions include reading and clearing fault codes, viewing ECU information, checking live data and freeze-frame information, carrying out a complete vehicle scan and opening individual modules for more focused diagnosis.

The exact systems available depend on the make, model, year, market specification and fitted control modules.

Bi-Directional Control and Active Testing

Bi-directional control allows the CR Pro S to send commands to supported modules and components rather than only reading stored information. This can help confirm whether the component itself responds before replacement parts are ordered.

Depending on the vehicle, active tests can include fuel pumps, injectors, cooling fans, headlights, window regulators, door locks, mirrors, throttle actuators, ignition coils, ABS pump motors, HVAC components, relays and other supported electrical systems.

iCarsoft lists more than 4000 individual active-test items across supported vehicles. This is a combined software total, not a promise that every test is available on every vehicle.

Selected ECU Coding and Adaptations

The CR Pro S supports selected coding, adaptation and configuration functions on compatible vehicles from BMW, Volkswagen Group, Hyundai and Kia, Ford, Mazda, Renault, Chrysler, Jeep, Dodge and Subaru.

Depending on the vehicle, this may include component matching, module adaptation, parameter calibration, selected programmable settings, data migration and supported feature configuration.

This is not universal online dealer programming, key programming or unrestricted blank-module programming. Confirm the exact vehicle and required coding function before purchase.

50 Service and Maintenance Functions

The CR Pro S combines nine commonly used service functions with 41 additional higher-level routines for supported vehicles.

Additional supported procedures can include transmission adaptations, air suspension service, air-conditioning routines, headlamp calibration, airbag functions, window and seat calibration, EGR and AdBlue procedures, clutch matching, crankshaft learning, turbocharger functions, NOx sensor reset, radar and camera calibration and other vehicle-specific operations.

Service functions vary by vehicle make, model, year, system and ECU configuration. A listed function is not available on every supported vehicle.

CAN-FD and Later-Model Vehicles

CAN-FD is supported on compatible later-model platforms, including selected newer GM and Chrysler-group vehicles. This improves communication with vehicles that may not be fully accessible using older diagnostic hardware.

Some late-model vehicles use manufacturer security gateways that can restrict active tests, service procedures or coding. Exact access depends on the vehicle and manufacturer requirements.

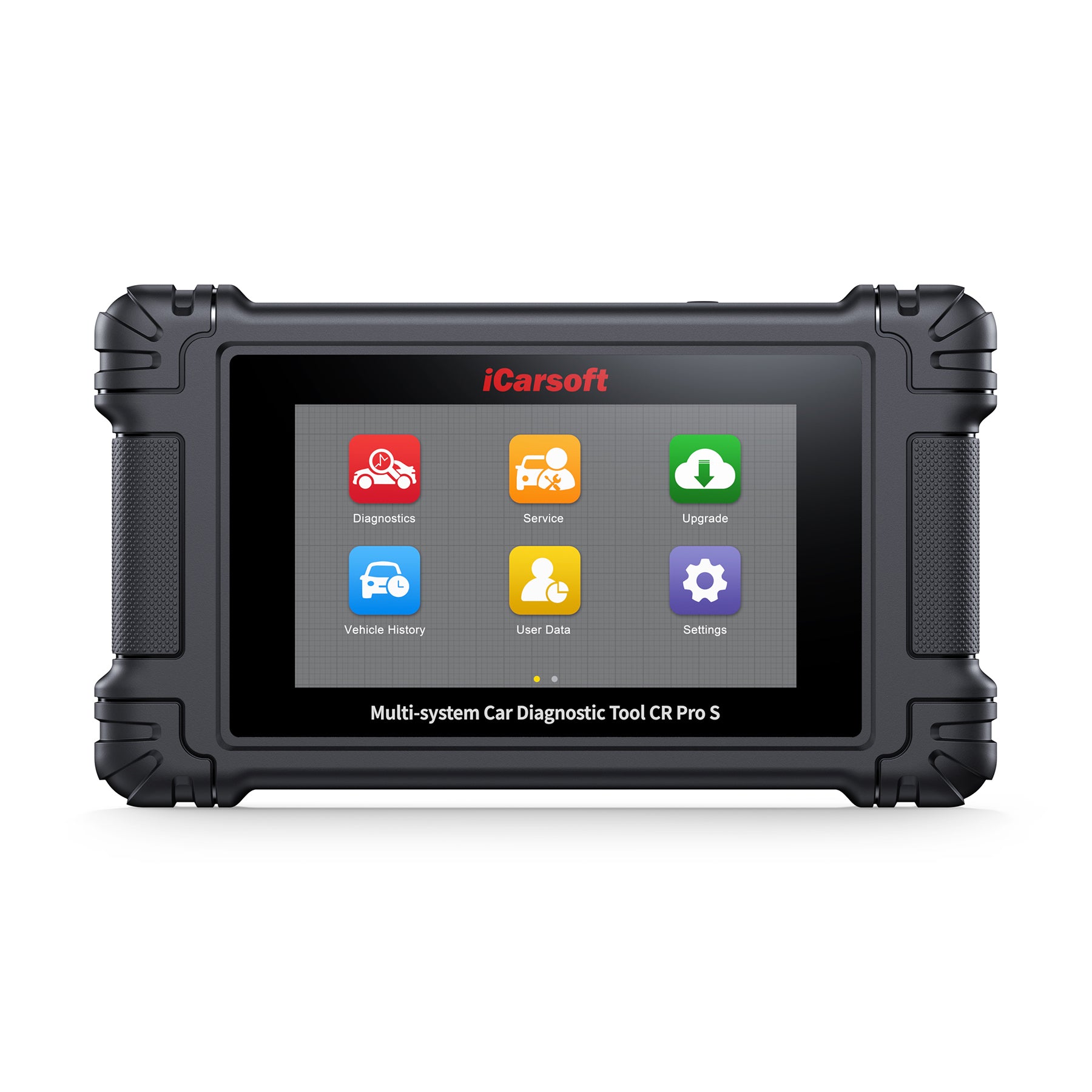

Touchscreen Hardware and Updates

The Android platform uses a quad-core 1.3GHz processor, 32GB internal storage and a 5-inch 854 × 480 capacitive touchscreen. The 5000mAh rechargeable battery provides around six hours of continuous use.

Updates are downloaded directly through 2.4GHz Wi-Fi. No Windows computer or annual update subscription is required for routine software upgrades.

CR Pro+ or CR Pro S?

Vehicle Coverage

The iCarsoft CR Pro S supports 58 major vehicle makes across European, Asian, American and Australian vehicles.

European:
Mercedes-Benz, Maybach, BMW, Mini, Rolls-Royce, Abarth, Fiat, Lancia, Alfa Romeo, Ferrari, Maserati, Ford Europe, Jaguar, Land Rover, Opel, Vauxhall, Porsche, Citroën, DS, Peugeot, Dacia, Renault, Saab, Smart, Sprinter, Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen, Volkswagen Commercial, Volkswagen LT3, MAN Light-Duty and Volvo.

Asian:
Daewoo, Acura, Honda, Hyundai, Kia, Isuzu, Mazda, Mitsubishi, Infiniti, Nissan, Nissan GT-R, Renault Samsung, Subaru, Suzuki, Lexus, Scion and Toyota.

American and Australian:
Chrysler, Dodge, Jeep, Ford USA, GM, Holden and Ford Australia.

Hardware Specifications

• Android operating system
• Quad-core 1.3GHz processor
• 5-inch capacitive touchscreen, 854 × 480
• 32GB internal storage
• 5000mAh rechargeable battery
• Approximately six hours of continuous operation
• Wi-Fi, USB 2.0 and OBDII connectivity
• CAN-FD protocol support
• Dimensions: 200 × 116 × 30.2mm
• Weight: approximately 380g

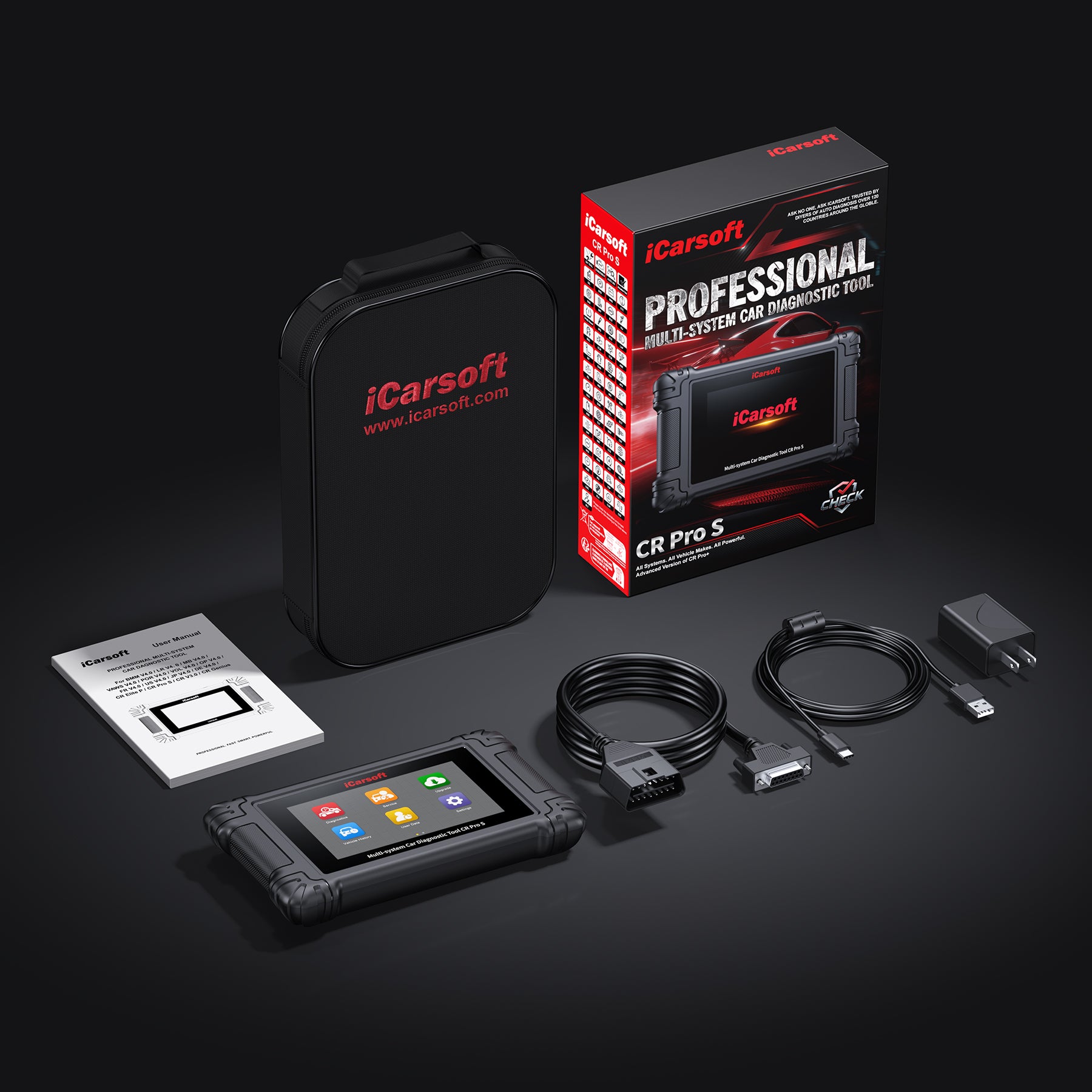

What’s in the Box

• iCarsoft CR Pro S diagnostic unit
• OBDII 16-pin main cable
• USB-C charging and data cable
• User manual and quick guide
• Protective carry case

Is the CR Pro S the Right iCarsoft Tool for You?

Choose the CR Pro S if you want one of the most capable compact handheld tools in the iCarsoft range, with a touchscreen interface, all-makes full-system diagnostics, strong active testing, selected ECU coding, CAN-FD support and lifetime Wi-Fi updates.

Choose the CR Pro+ where value and straightforward full-system diagnostics are the priority. Move to the CR Max BT or CR Max P where a larger display and wireless vehicle connection will improve the way you work.
