iCarsoft BMM v4.0 BMW/MINI/Rolls-Royce (+2 other Brands) Scan Tool

The iCarsoft BMM V4.0 is a dedicated full-system diagnostic tool for supported BMW, MINI and Rolls-Royce vehicles. It is designed for owners, BMW enthusiasts, mobile technicians and independent workshops that want deeper manufacturer-specific access than a basic OBD2 code reader can provide.

BMW Group software is installed from the factory, and two further vehicle software groups can be downloaded at no extra charge. The V4 platform adds a 5-inch Android touchscreen, AutoVIN, bi-directional active testing, selected coding and adaptation functions, CAN-FD support, diagnostic reports, 64GB storage and lifetime free Wi-Fi updates.

Why Choose the BMM V4.0?

BMW Group vehicles use a large number of interconnected control modules for drivetrain, chassis, safety, body, comfort and driver-assistance systems. The BMM V4.0 is built to access supported manufacturer-specific modules and carry out the service routines commonly required during maintenance, diagnosis and repair.

Key Features

Full-System BMW, MINI and Rolls-Royce Diagnostics

The BMM V4.0 is designed to communicate with manufacturer-specific control modules throughout supported vehicles. Depending on the model, this can include engine management, transmission, ABS, airbags, steering, instrument cluster, body control, climate control, electronic parking brake, suspension, lighting, comfort systems, gateway modules, driver-assistance systems and other fitted electronics.

Available functions include reading and clearing fault codes, viewing ECU information, checking live data and freeze-frame information, carrying out a complete vehicle scan and opening individual modules for more focused diagnosis.

The exact systems available depend on the vehicle’s model, year, market specification and fitted control modules.

Bi-Directional Control and Active Testing

Bi-directional control allows the BMM V4.0 to send commands to supported modules and components rather than only reading stored information. This can help confirm whether a component responds before replacement parts are ordered.

Depending on the vehicle, active tests can include ABS pump operation, window regulators, fuel pumps, throttle actuators, wipers and washers, EGR valves, injectors, cooling fans, transmission solenoids and other supported electrical systems.

Active-test coverage varies by model, year and fitted ECU. A test available on one BMW Group vehicle may not be available on another.

BMW-Specific Coding and Adaptations

For supported vehicles and control modules, the BMM V4.0 includes selected coding, calibration and adaptation functions. These can assist with module setup, replacement-part learning, resetting adaptation values and vehicle-specific maintenance work across compatible E, F and G chassis platforms.

Coding coverage is vehicle and module specific. This tool should not be treated as a universal ECU programming or key-programming device.

15 Service and Maintenance Functions

The BMM V4.0 combines regularly used maintenance procedures with higher-level BMW Group workshop routines for supported vehicles.

Additional supported functions may be available in the tool’s Miscellaneous section.

Service-function availability varies by model, year, system and ECU configuration. A listed function is not available on every supported vehicle.

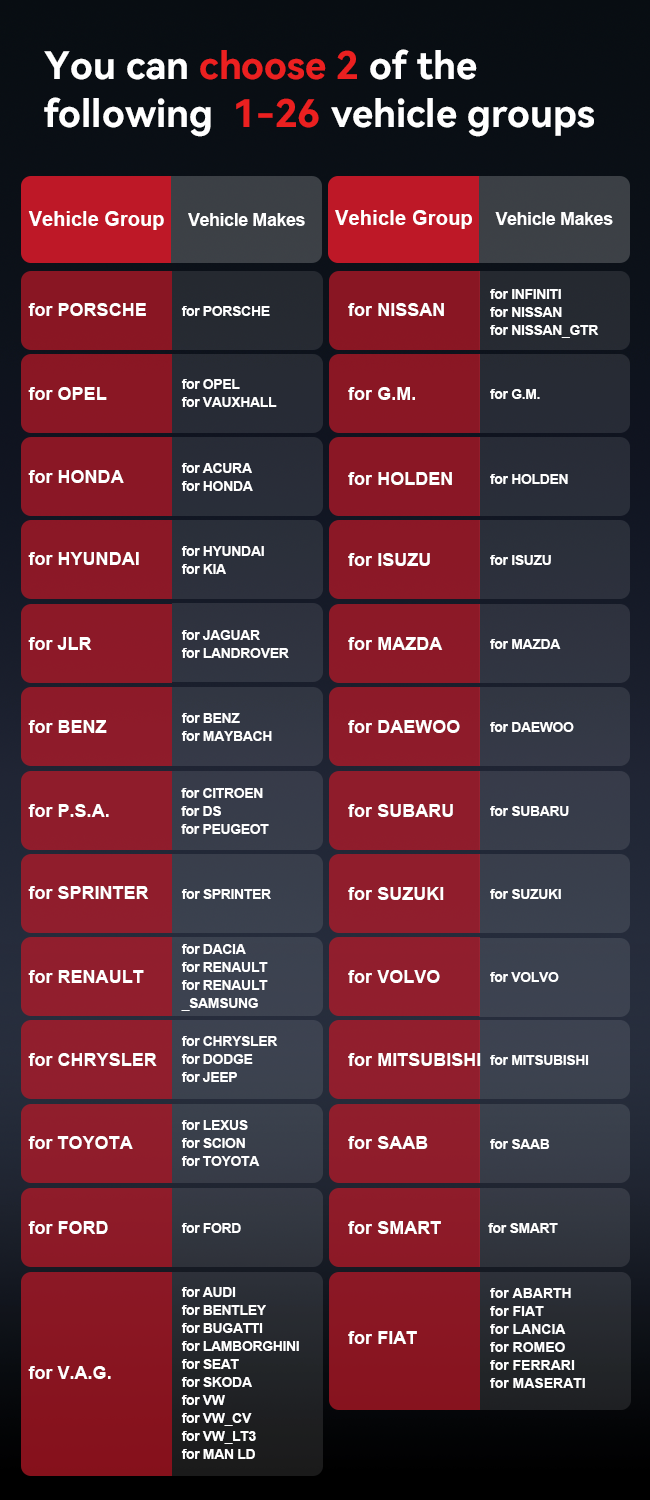

Two Additional Vehicle Software Groups

After purchase, two additional supported vehicle groups can be downloaded through Wi-Fi at no extra charge. A software group may cover one make or several related marques, depending on the selection.

The extra downloads add flexibility, but the BMM V4.0 remains primarily a BMW Group specialist. For regular work across many unrelated makes, an all-makes CR Pro or CR Max tool is more suitable.

CAN-FD and Later-Model Vehicles

The BMM V4.0 supports CAN-FD communication used by selected newer vehicles. This improves access to compatible later-model platforms that may not communicate fully with older diagnostic hardware.

Some newer vehicles also use manufacturer security gateways that can restrict active tests, coding or service procedures. Exact access depends on the vehicle and manufacturer requirements.

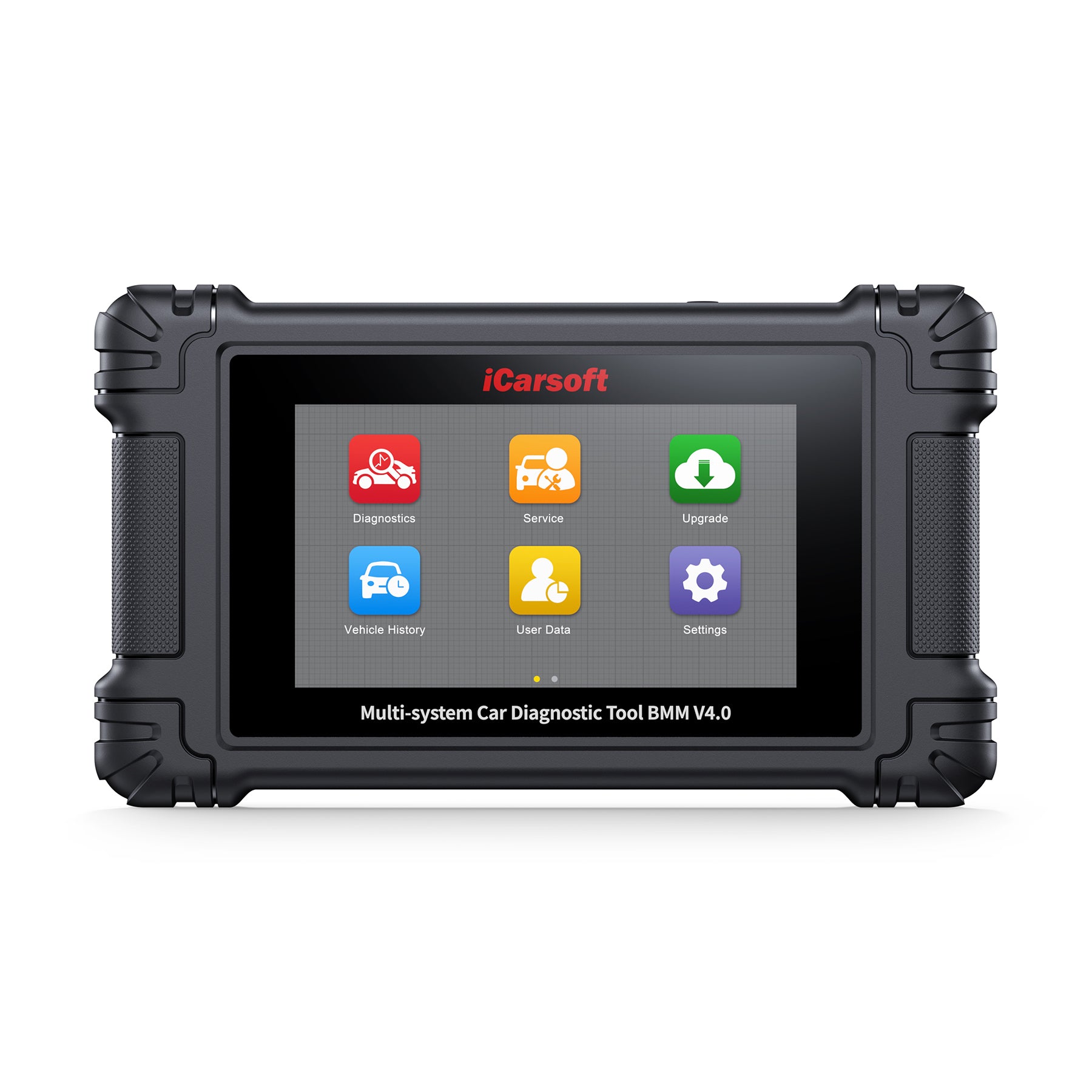

Touchscreen Hardware and Updates

The Android platform uses a quad-core 1.3GHz processor, 64GB internal storage and a 5-inch 854 × 480 capacitive touchscreen. The 5000mAh rechargeable battery provides around six hours of continuous use.

Updates and the two additional software groups are downloaded directly through 2.4GHz Wi-Fi. No annual update subscription is required.

Vehicle Coverage

The BMM V4.0 is intended for supported BMW, MINI and Rolls-Royce vehicles using the standard 16-pin diagnostic connection. Coverage includes many BMW E, F and G chassis platforms, along with supported MINI and Rolls-Royce models.

Coverage, systems, service functions, active tests and coding capability vary by model, year, market specification and fitted ECU.

BMM V4.0 Compared

Hardware Specifications

• Android operating system
• Quad-core 1.3GHz processor
• 5-inch capacitive touchscreen, 854 × 480
• 64GB internal storage
• 5000mAh rechargeable battery
• Approximately six hours of continuous operation
• Wi-Fi, USB 2.0 and OBDII connectivity
• CAN-FD protocol support
• Dimensions: 200 × 116 × 30.2mm
• Weight: approximately 380g

What’s in the Box

• iCarsoft BMM V4.0 diagnostic unit
• OBDII 16-pin main cable
• USB-C charging and data cable
• User manual
• Protective carry case

Is the BMM V4.0 the Right iCarsoft Tool for You?

Choose the BMM V4.0 if you mainly work on BMW, MINI and Rolls-Royce vehicles and want a modern touchscreen tool with full-system diagnostics, active testing, selected BMW-specific coding, strong service capability and two extra vehicle software groups included.

For a lower-cost button-operated BMW Group option, compare it with the BMM V3.0. For broader all-makes coverage, move to the CR Pro+ or CR Pro S.
