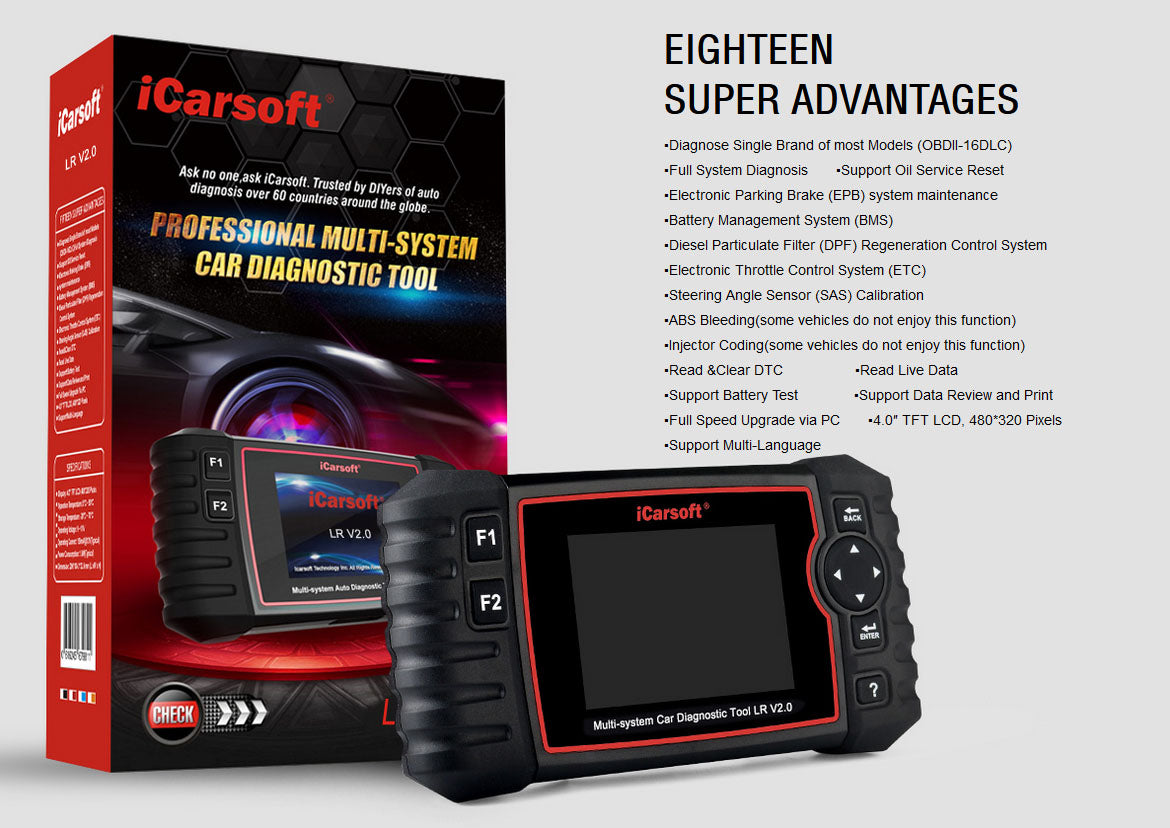

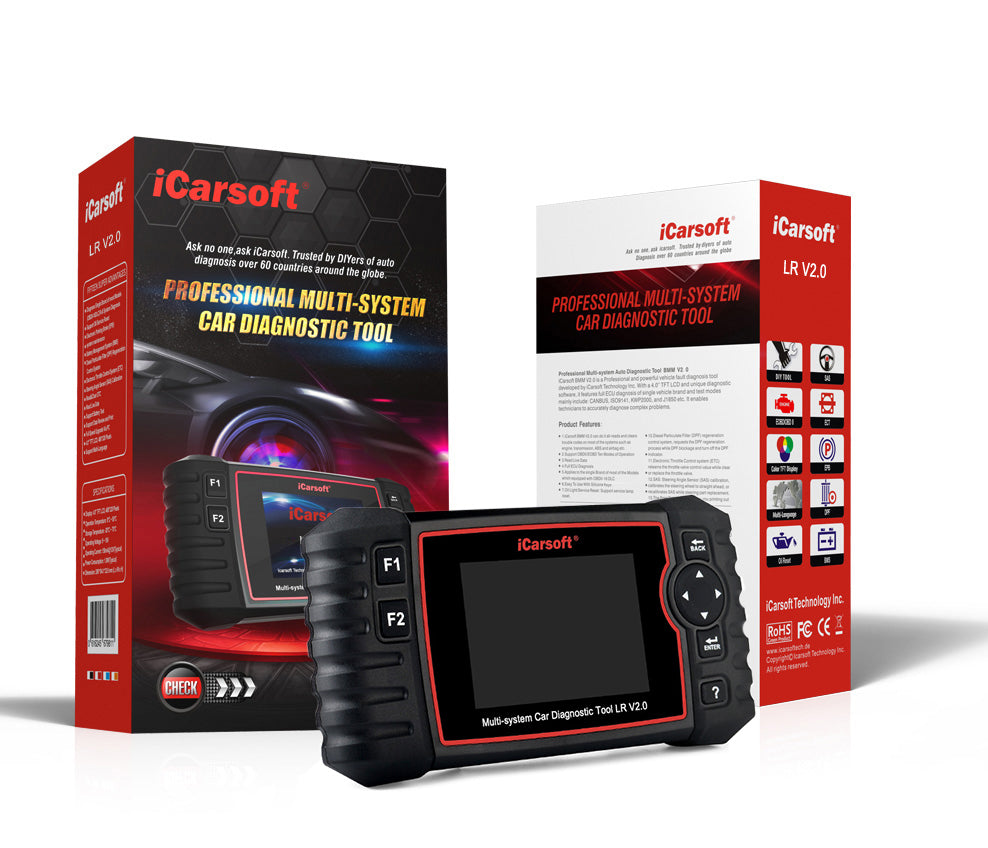

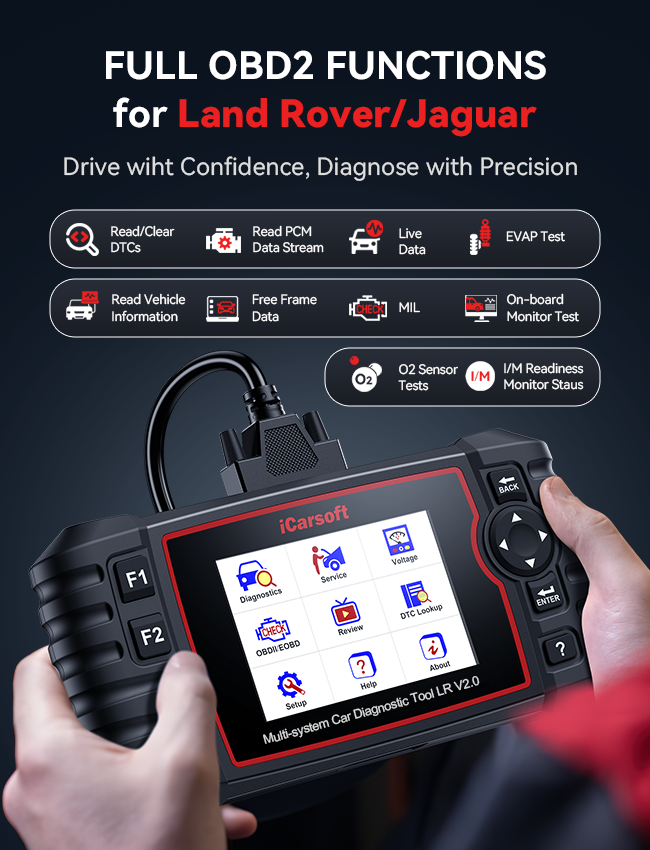

iCarsoft LR v2.0 Land Rover/Jaguar Scan Tool

The iCarsoft LR V2.0 is a dedicated Land Rover and Jaguar scan tool for owners, home mechanics and smaller workshops that want deeper JLR-specific diagnostics than a basic engine-code reader without paying for the advanced V3 or touchscreen V4 platform.

It can perform a full scan of supported vehicle systems, read and clear manufacturer-specific fault codes, display live data, retrieve ECU information and carry out nine commonly used service and maintenance functions.

Key Features

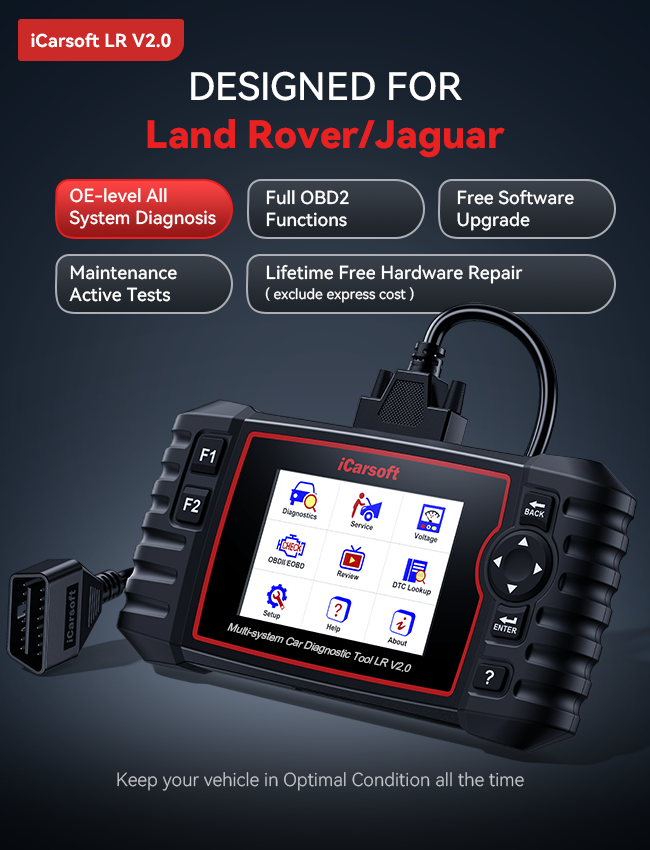

Full-System Land Rover and Jaguar Diagnostics

Unlike a basic OBD2 reader that mainly communicates with the engine system, the LR V2.0 can access manufacturer-specific modules throughout supported Land Rover and Jaguar vehicles.

Depending on the model, this can include engine, transmission, ABS, airbags, instrument cluster, body control, climate control, steering, electronic parking brake, suspension, lighting, security and other fitted systems.

The exact modules available vary by vehicle model, year, market specification and fitted equipment.

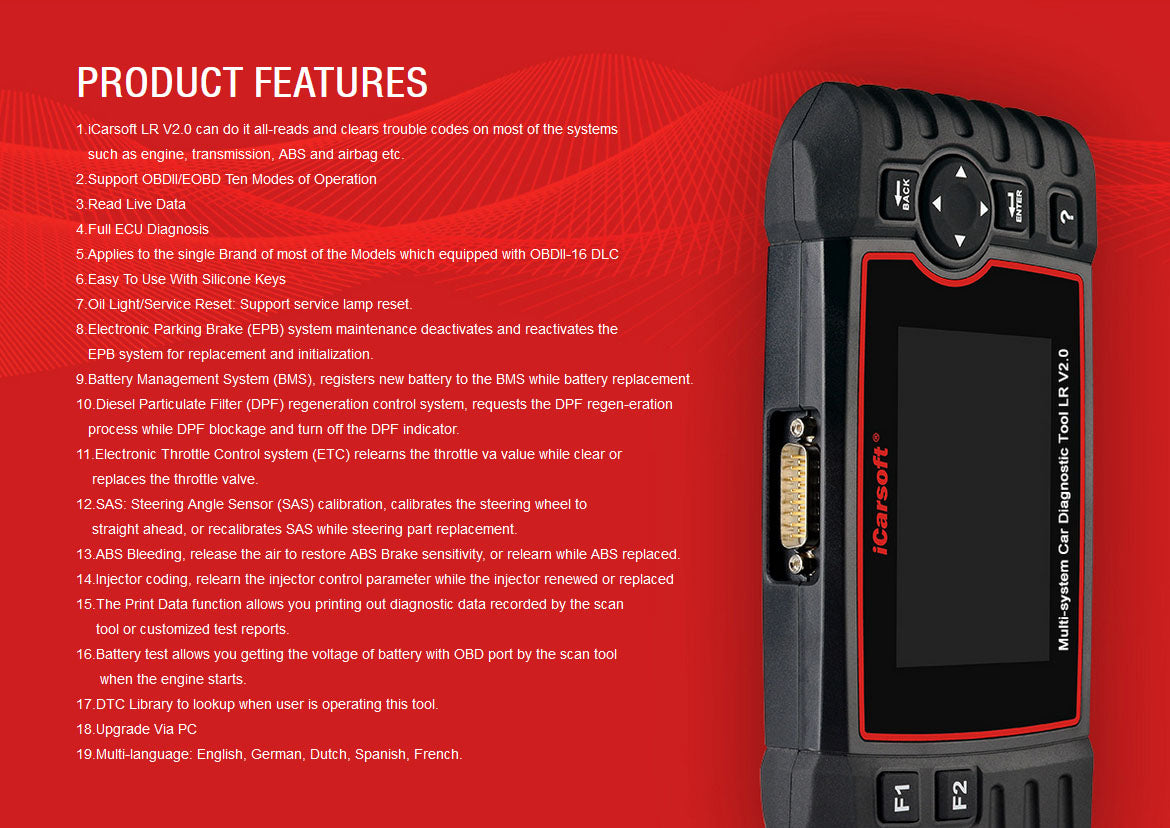

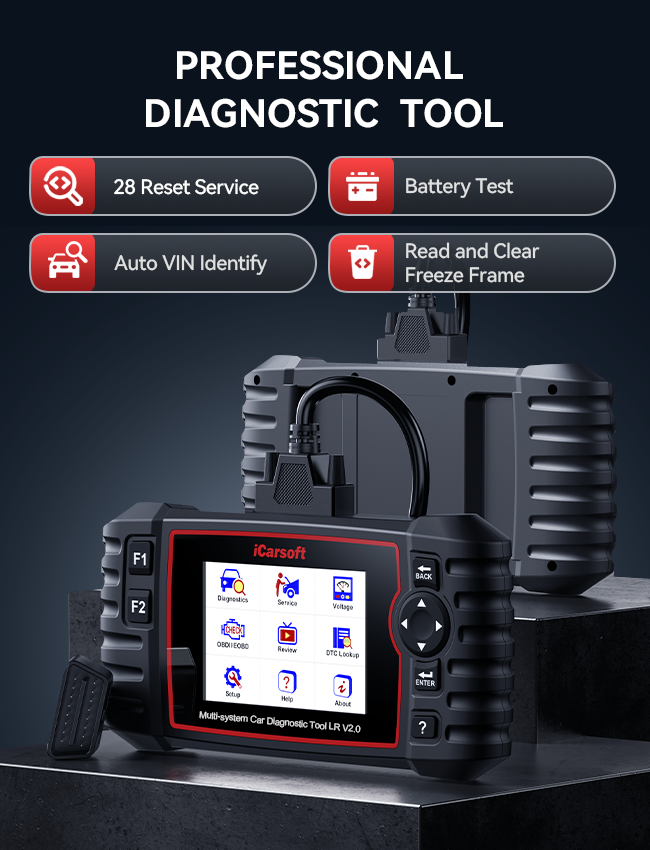

Nine Essential Service Functions

The LR V2.0 includes the maintenance procedures most commonly required by JLR owners and general workshops:

Service-function availability varies by model, year and fitted ECU. A listed function is not available on every supported vehicle.

Vehicle Coverage

The LR V2.0 is intended for supported OBDII-era Land Rover, Range Rover and Jaguar vehicles using the standard 16-pin diagnostic connection.

Coverage includes many Defender, Discovery, Discovery Sport, Freelander, Range Rover, Range Rover Sport, Evoque, Velar, XE, XF, XJ, XK, F-Type, F-Pace, E-Pace and I-Pace models.

Coverage on early pre-2000 Land Rover and Jaguar vehicles can be limited or unavailable, particularly where older diagnostic connectors or protocols are used.

LR V2.0, LR V3.0 or LR V4.0?

Hardware Specifications

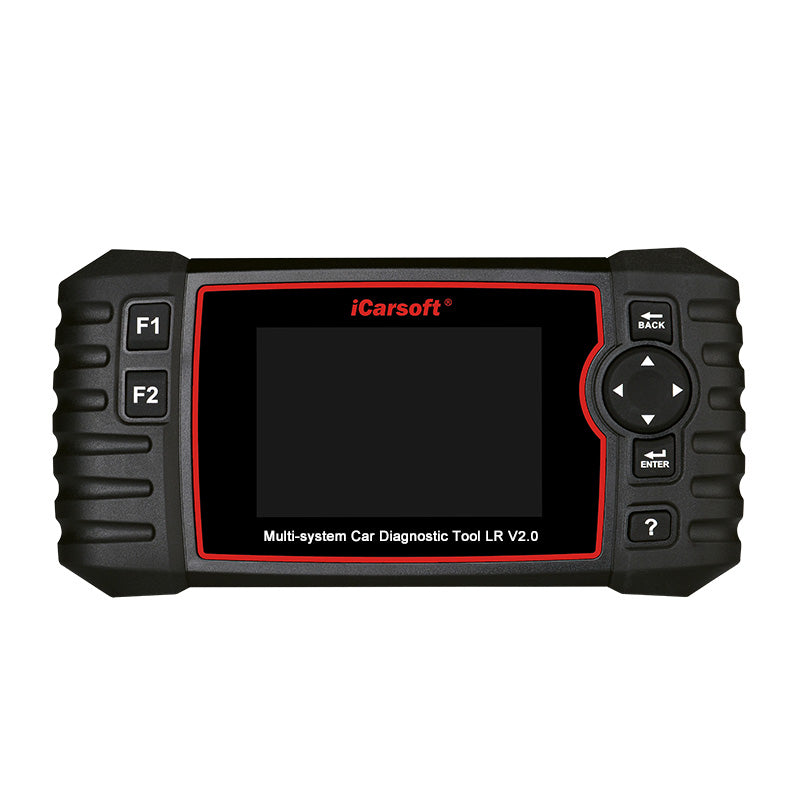

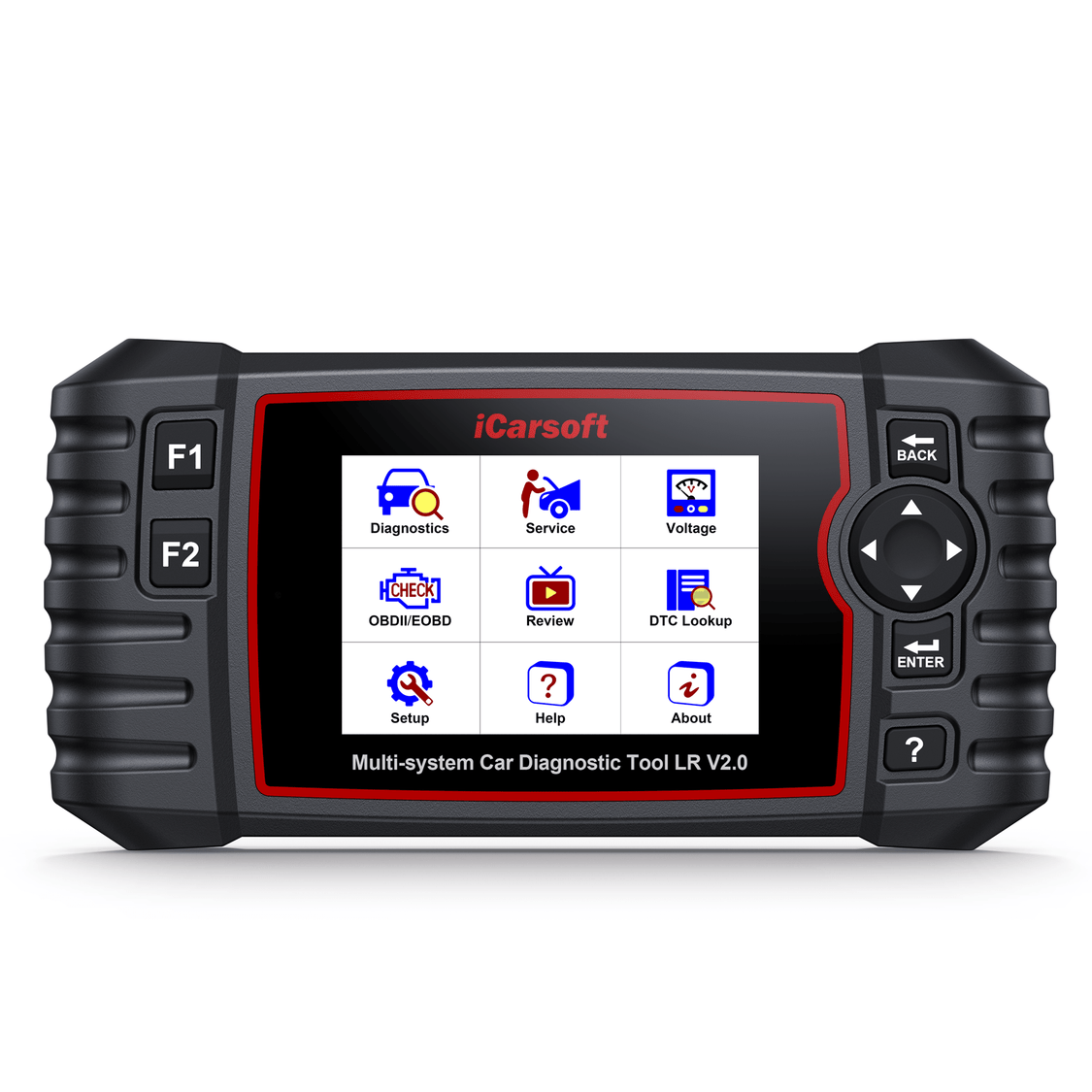

• 4-inch TFT LCD, 480 × 320
• Physical-button navigation
• Vehicle-powered through the diagnostic connection
• Operating voltage: 9–18V
• Typical operating current: 150mA at 12V
• Typical power consumption: 1.8W
• Dimensions: 206 × 104.1 × 32.6mm
• Weight: under 350g

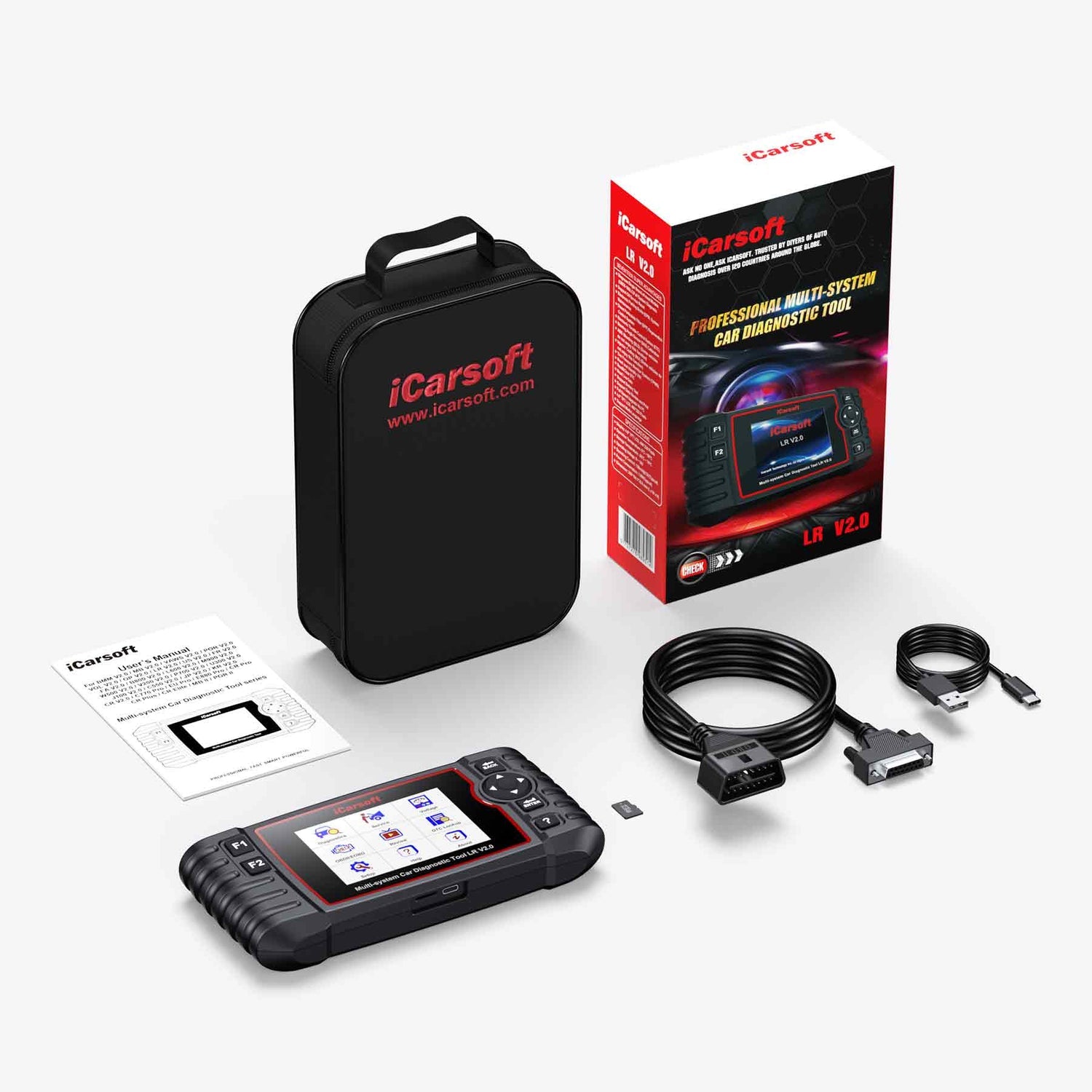

What’s in the Box

• iCarsoft LR V2.0 diagnostic unit
• OBDII 16-pin main cable
• USB update cable
• Pre-installed storage card
• User manual
• Protective carry case

Is the LR V2.0 the Right iCarsoft Tool for You?

Choose the LR V2.0 if Land Rover, Range Rover and Jaguar vehicles are your main focus and you need full-system fault diagnosis, live data and the nine most useful service functions in a simple handheld tool.

Choose the LR V3.0 when active testing or wider JLR service capability matters. Choose the LR V4.0 for touchscreen, Wi-Fi updates and additional vehicle software.
