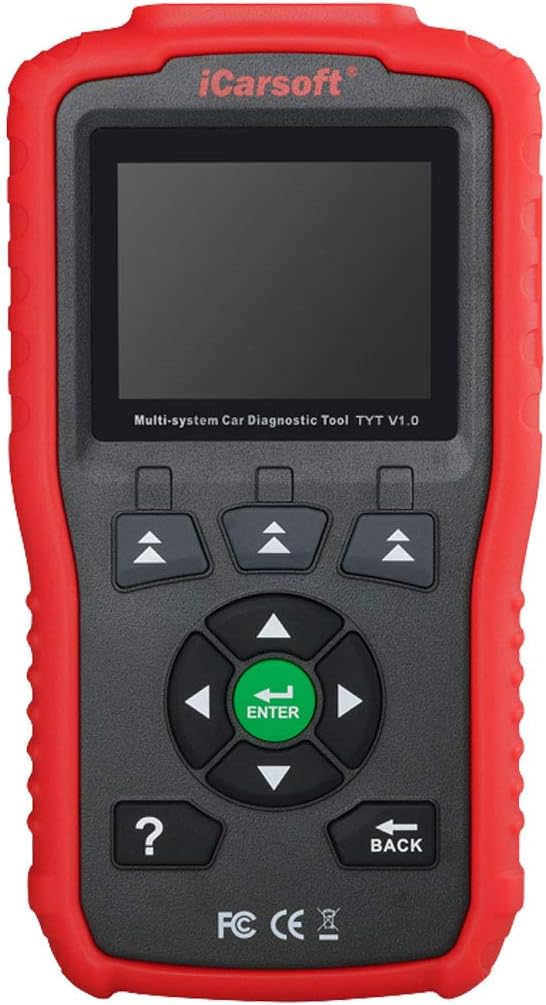

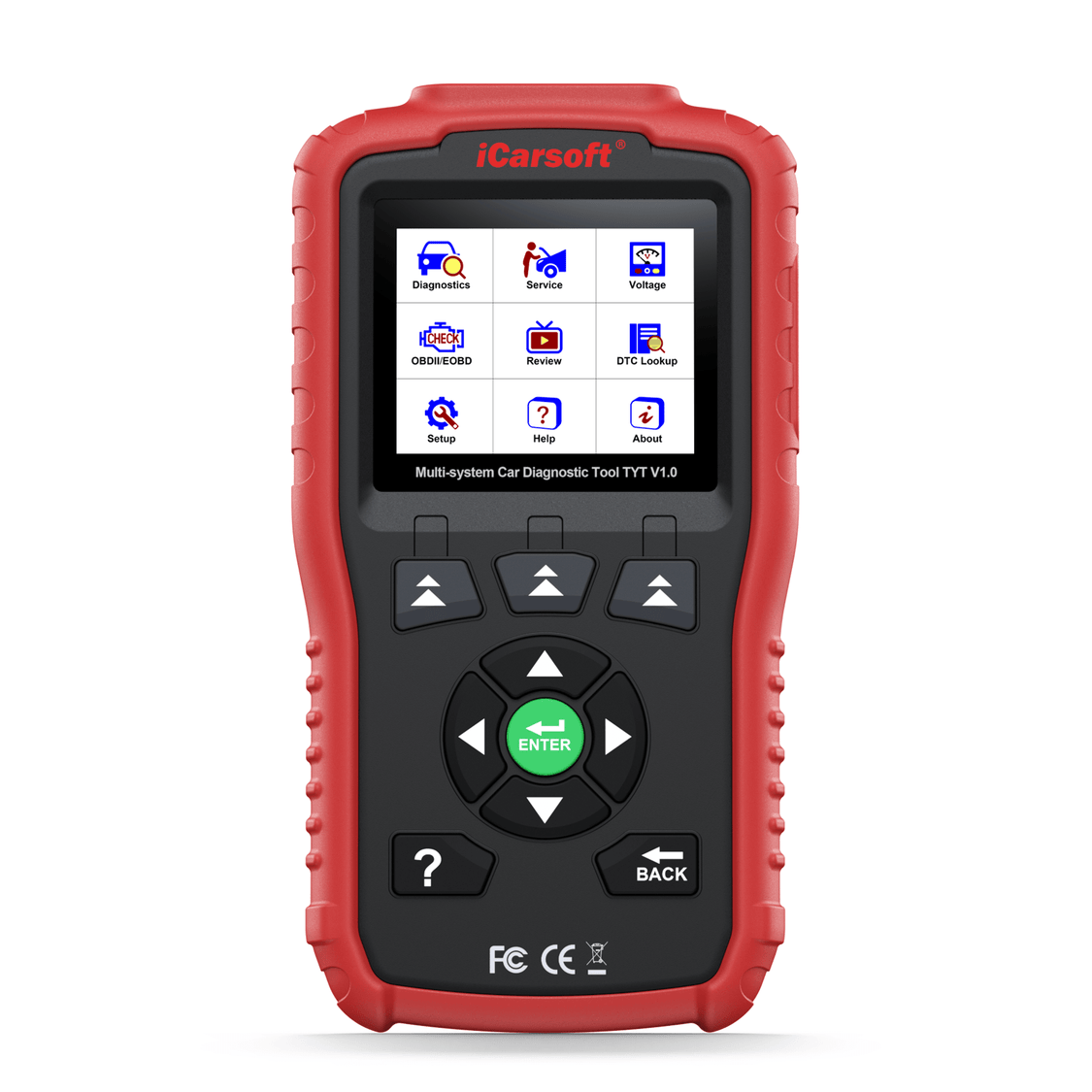

iCarsoft TYT v1.0 Japanese Vehicle Scan Tool

The iCarsoft TYT V1.0 is a straightforward manufacturer-specific scan tool for supported Japanese and Korean vehicles. It is designed for owners and home mechanics who want deeper access than an engine-only code reader without moving to the wider service capability of the JP V2.0, V3.0 or V4.0.

It can read and clear manufacturer-specific fault codes, display live data, retrieve ECU information and scan supported control modules beyond the engine system.

Key Features

• Dedicated Japanese and Korean vehicle software
• Coverage across 16 supported makes
• Manufacturer-specific all-system diagnostics where supported
• Read and clear diagnostic trouble codes
• View live data and freeze-frame information
• Read ECU and vehicle information
• AutoVIN identification on supported iH-series hardware and vehicles
• Oil-service reset where supported
• Steering-angle sensor reset where supported
• All 10 standard OBD2 emissions test modes
• Battery-voltage testing
• Diagnostic history and printable reports
• Lifetime free PC-based software updates

All-System Diagnostics

Unlike an engine-only OBD2 reader, the TYT V1.0 can communicate with manufacturer-specific modules throughout supported vehicles.

Depending on the make, model and year, this can include engine, transmission, ABS, airbags, instrument cluster, body control, climate control, steering, lighting, chassis and other fitted systems.

The exact modules available vary by vehicle, market specification and fitted equipment.

Two Service Functions

These functions are vehicle-dependent. The TYT V1.0 does not include the broader EPB, DPF, battery, injector, ABS-bleeding or active-test capability offered by later JP models.

Supported Vehicle Makes

TYT V1.0, JP V2.0 or JP V3.0?

Hardware Specifications

• 2.8-inch TFT LCD, 320 × 240
• Physical-button navigation
• Vehicle-powered through the diagnostic connection
• Operating voltage: 9–18V
• Typical operating current: 150mA at 12V
• Typical power consumption: 1.8W
• Dimensions: 187.5 × 101 × 32mm

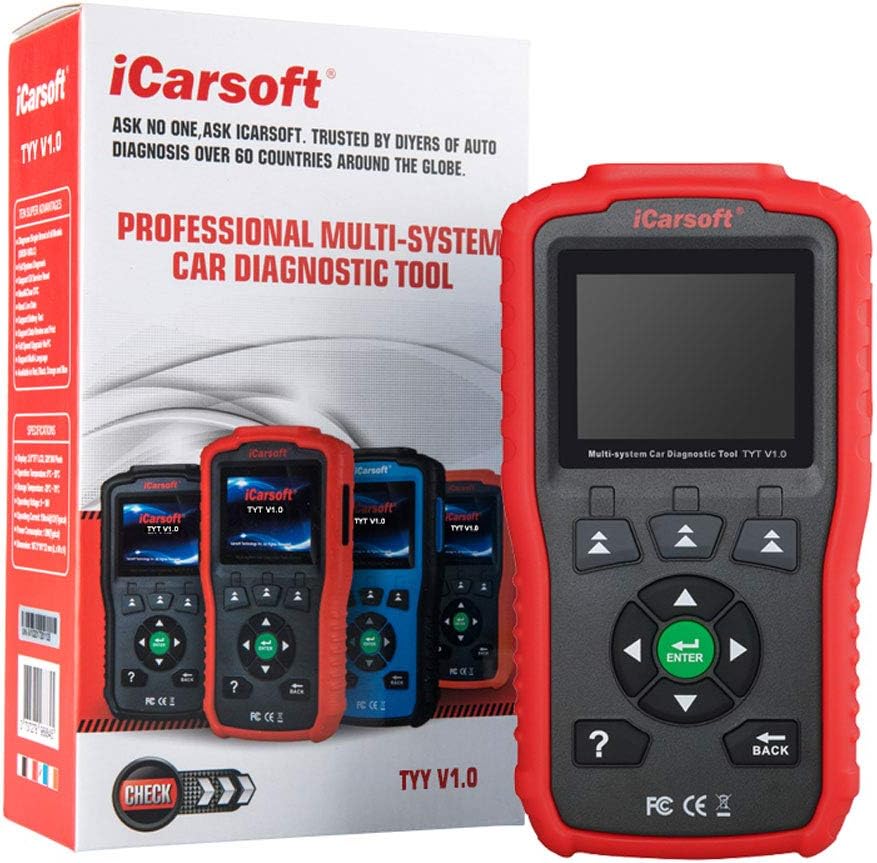

What’s in the Box

• iCarsoft TYT V1.0 diagnostic unit
• OBDII 16-pin main cable
• USB update cable
• Pre-installed storage card
• User manual
• Protective carry case

Is the TYT V1.0 the Right Tool for You?

Choose the TYT V1.0 if supported Japanese and Korean vehicles are your main focus and you need an affordable handheld for system fault codes, live data, oil reset and steering-angle calibration.

Choose the JP V2.0 or JP V3.0 where wider service capability or active testing is required. Choose a CR Pro or CR Max model for broad all-makes coverage.
