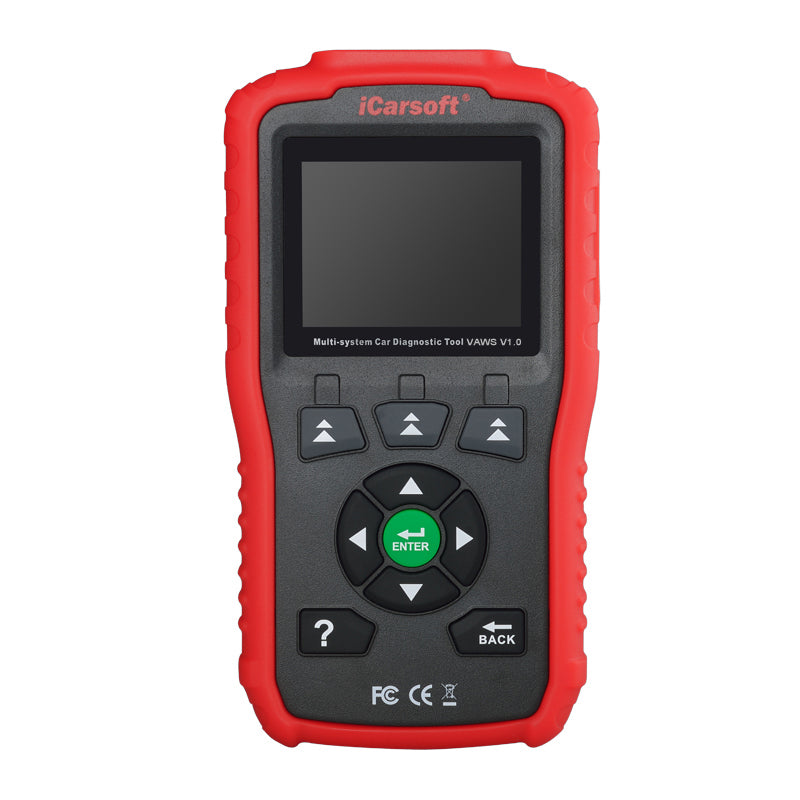

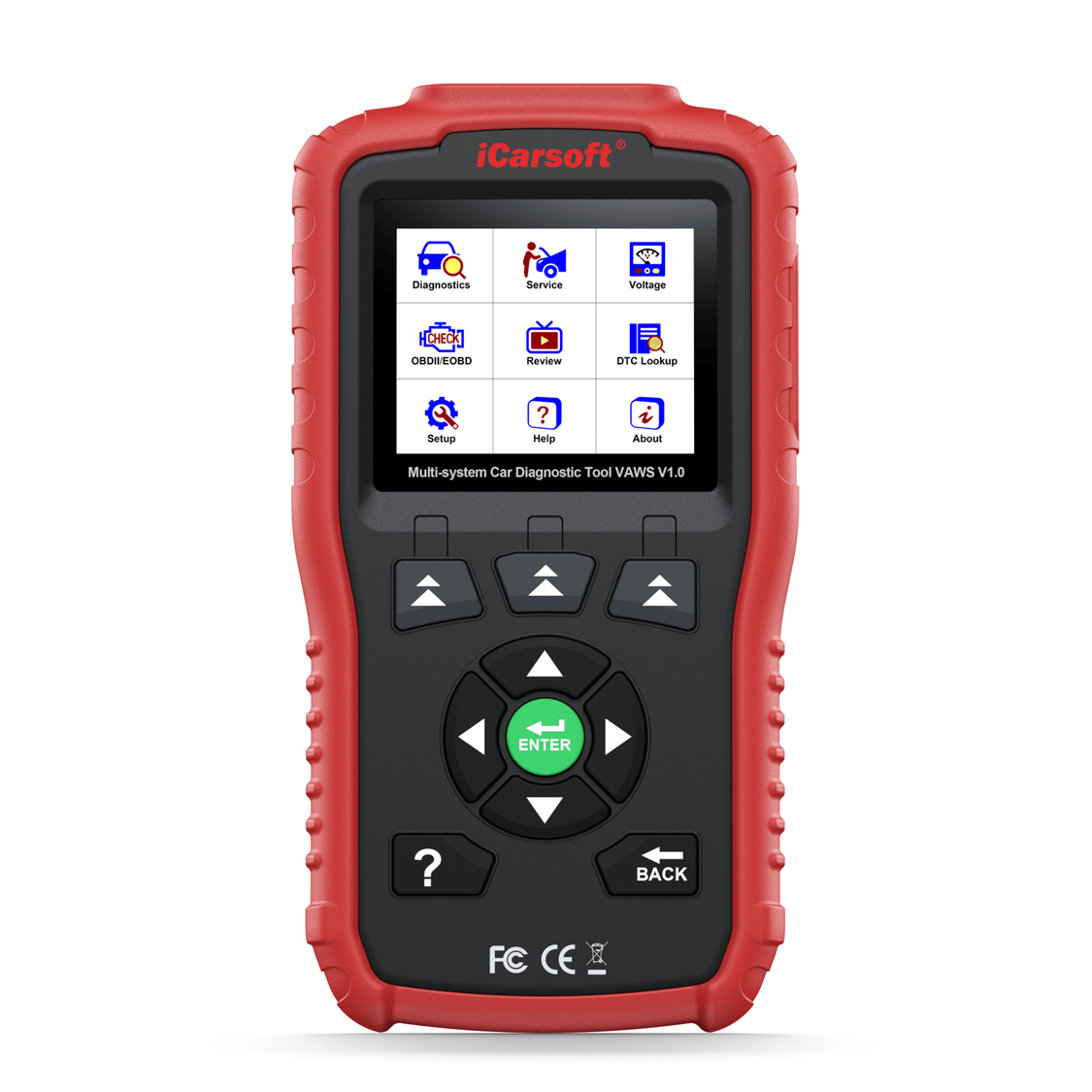

iCarsoft VAWS v1.0 Audi/VW/Seat/Skoda Scan Tool

The iCarsoft VAWS V1.0 is a straightforward Volkswagen Group diagnostic tool for owners and home mechanics who want deeper access than an engine-only OBD2 reader without moving to the wider service and active-test capability of the VAWS V2.0, V3.0 or V4.0.

It can read and clear manufacturer-specific fault codes, display live data, retrieve ECU information and scan supported control modules throughout compatible vehicles.

Key Features

• Dedicated Volkswagen Group diagnostic software
• Volkswagen, Audi, Skoda, SEAT, Bentley, Bugatti and Lamborghini coverage
• Manufacturer-specific all-system diagnostics where supported
• Read and clear diagnostic trouble codes
• View live data and freeze-frame information
• Read ECU and vehicle information
• AutoVIN identification where supported
• Oil-service reset where supported
• Steering-angle sensor reset where supported
• All 10 standard OBD2 emissions test modes
• Battery-voltage testing
• Diagnostic history and printable reports
• Lifetime free PC-based software updates

All-System Diagnostics

Unlike a basic OBD2 reader, the VAWS V1.0 can communicate with manufacturer-specific modules beyond the engine system. Depending on the vehicle, this can include transmission, ABS, airbags, instrument cluster, body control, climate control, steering, lighting, infotainment and comfort systems.

The exact modules and live-data values available vary by marque, model, year, market specification and fitted equipment.

Two Service Functions

These functions are vehicle-dependent. The VAWS V1.0 does not include EPB service, DPF regeneration, battery registration, active testing, coding or adaptations.

Supported Marques

Volkswagen, Audi, Skoda, SEAT, Bentley, Bugatti and Lamborghini.

VAWS V1.0, V2.0 or V3.0?

Hardware Specifications

• 2.8-inch TFT LCD, 320 × 240
• Physical-button navigation
• Vehicle-powered through the diagnostic connection
• Operating voltage: 9–18V
• Typical operating current: 150mA at 12V
• Typical power consumption: 1.8W
• Dimensions: 187.5 × 101 × 32mm

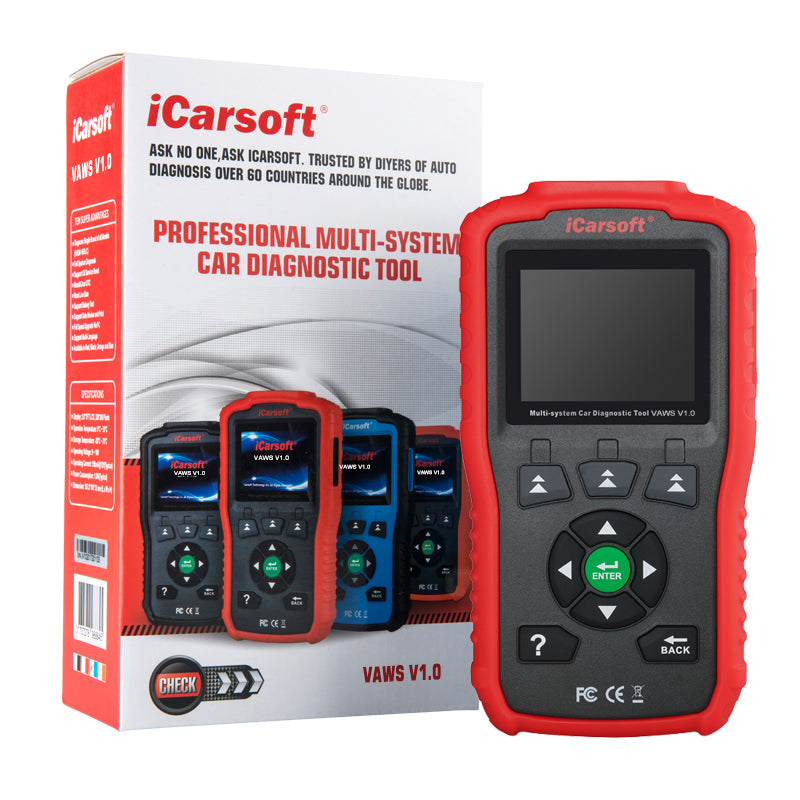

What’s in the Box

• iCarsoft VAWS V1.0 diagnostic unit
• OBDII 16-pin main cable
• USB update cable
• Pre-installed storage card
• User manual
• Protective carry case

Is the VAWS V1.0 the Right Tool for You?

Choose the VAWS V1.0 if Volkswagen Group vehicles are your main focus and you need an affordable handheld for system fault codes, live data, oil reset and steering-angle calibration.

Choose the VAWS V2.0 or V3.0 where wider service capability, active testing or VAG-specific adaptations are required.
